Product Features
In the past, window and door products always gave people a sense of "heaviness" and security. However, the form of sliding doors is not limited to this! With simple lines and understated texture, the Perfect System Ultra-Narrow Sliding Door series not only pursues an extremely narrow appearance but also enhances the high-quality life experience while ensuring performance and aesthetics.
1
The Perfect System Ultra-Narrow Sliding Door reduces the door frame width to 1.2 cm, creating an extremely narrow visible surface, making the home view more open and the visual effect lighter and unobstructed.
2
The systematic design of profiles and hardware, with hidden hardware design, ensures that the connecting parts, grooves, and screws are not exposed, achieving a truly minimalist appearance.
3
The ultimate gap technology, precise to the millimeter, is safe and tight. When the Perfect System Ultra-Narrow Sliding Door is used as a kitchen partition, it can easily block oil fumes.
4
The Perfect System Ultra-Narrow Sliding Door adopts a new anti-sway and anti-sink structure design. With aerospace-grade materials and high-precision processing, it ensures smooth and stable sliding of the door panel.
5
The multi-point shock absorption system design inside the door panel eliminates noise during sliding, which does not affect normal living habits. It is quiet and easy to operate, and both the elderly and children in the family can use it conveniently.
6
The left-right sliding door design is equipped with a double-direction ultra-light damping system, making the sliding start easier. It can achieve self-closing in a very short distance. When the door panel is about to approach the door frame, the damping system works, slowing down the sliding speed and closing the door panel quietly and gently.
7
Multiple sliding doors can be linked together and aligned in a row, adapting to more space customization designs.
8
The Perfect System Ultra-Narrow Sliding Door is equipped with an adaptive independent suspension component and a standard long-lasting self-oiling system, which can increase the lubrication effect of the internal components, ensuring that the sliding door not only slides smoothly but also lasts longer.
The 4012 Perfect System Ultra-Narrow Sliding Door, simple and versatile, not only retains a certain degree of spatial privacy, but also provides better lighting, making it more suitable for multiple scenarios such as kitchens, studies, and tea rooms.
Product Configuration
| Wall Thickness Occupied |
Single Track: Exposed 57x36, Concealed 54x35 |
| Double Track |
Exposed 103x36, Concealed 100x35 |
| Triple Track |
Exposed 149x36, Concealed 146x35 |
| Quadruple Track |
Exposed 195x36, Concealed 192x35 |
| Profile wall thickness |
5.0mm |
| Strip configuration |
EPDM sealing rubber strip |
| Glass configuration |
8mm |
| Hardware system |
Shangpai L-type Handle + OPK Perfect System Hardware |

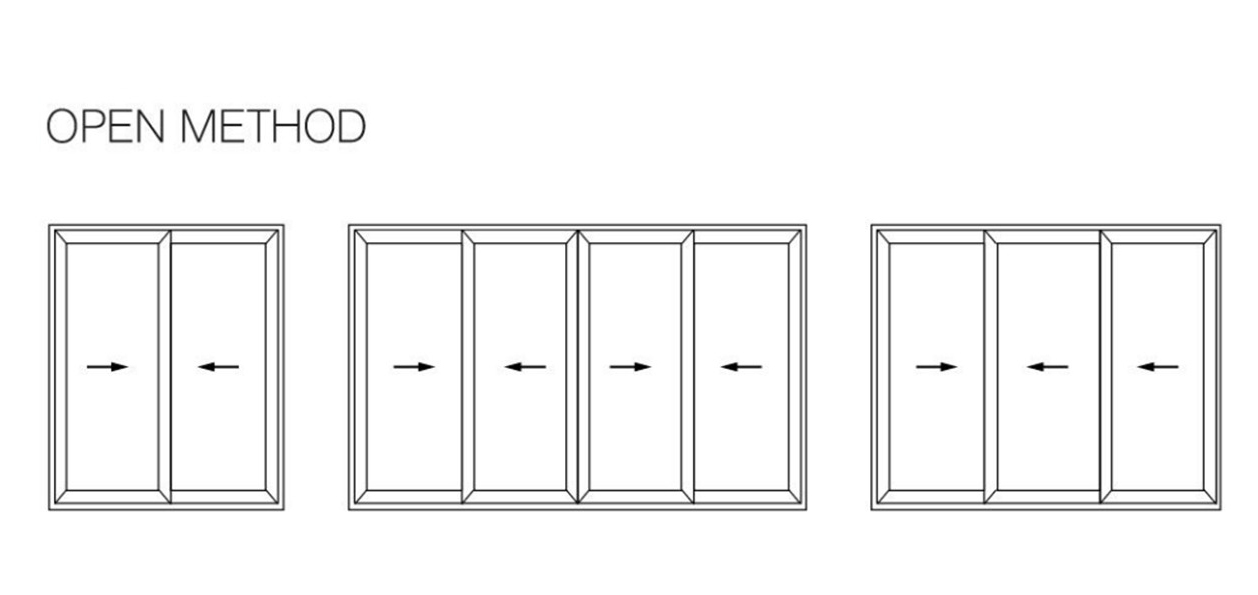

| Opening mode |
Conventional Sliding (Low Rail/High Rail)，Perfect System (Hanging Rail Exposed/Hanging Rail Concealed) |
