China Xingchao 126  Series Sliding Window Manufacturers, Factories

SOUND INSULATION     Lv. 4

WATER TIGHTNESS     Lv. 6

AIR TIGHTNESS     Lv. 8

WIND PRESSURE RESISTANCE     Lv. 9

INSULATION PROPERTY     Lv. 6

Product Description

Product Features

The XINGCHAO Panoramic suspended sliding window is an upgraded version of the traditional sliding window. It continues the traditional standard sliding track design while upgrading many details. Both in terms of appearance and performance, it is superior to the traditional sliding window.
It adopts primary aluminum profiles, with a thermal break and multi-chamber structure design, which is heat-insulating, environmentally friendly, energy-saving and consumption-reducing, and has high strength.
The drainage system is designed with a structure based on the isobaric principle, and the anti-backflow cover plate is added to ensure rapid and smooth drainage. The sensitive water-blocking plate is insect-proof, anti-seepage and wind-proof. The appearance is simple and elegant, suitable for modern minimalist style.
The track is made of multiple wool strips and the window sash is made of multiple rubber strips. Multiple wool strips are added in the middle of the track, and rubber strips are installed below the window sash instead of wool strips. The two fit together more tightly, improving the sealing performance.
High flange to prevent derailment. There are high retaining walls on the outside and in the center of the track, effectively preventing the window sashes from derailing and falling.
Humanized two-in-one handle. The hook belt reinforced aluminum material also serves as a handle. The handle has a large contact area and saves effort. At the same time, it effectively enhances the strength of the window sash, and the effect of preventing swaying and deformation under strong winds is obvious.
The sliding is smooth and light. A custom-made anti-balance wheel is installed on the top of the door leaf to prevent shaking. On typhoon days, it can prevent swaying due to the wind. The sliding is smooth and silent.
The appearance is extremely narrow, with the visible surface of the panel being only 28.5mm, providing a wide and high-quality view. The door frame is slender, enhancing the lighting.
Select high-quality hardware accessories, which are convenient and flexible. The new frame-wrapped fan design offers better air tightness, water tightness and sound insulation effects, and is easy to install.
The linear embedded track design is more aesthetically pleasing, soundproof, and has outstanding air and water tightness.
It can be made into a widened one-piece large handrail, easily solving the problem of no window sill when standing on the ground. The 205mm ultra-wide window sill makes the viewing more comfortable.
Dual options for inner and outer yarns are available. The diamond mesh is of high strength, corrosion-resistant and impact-resistant, making it a reassuring choice for low-rise residents. The imported high-definition network has strong light transmission, good ventilation and unobstructed view. It is the first choice for high-rise residents.
The panoramic suspended sliding window combines innovative technology with slender profiles, integrating advantages such as economy, multi-functionality, and multi-scenario application. It fully meets various practical home needs and has become the ideal choice for users when selecting sliding doors and windows.

Product Configuration

Border width 126mm
Profile wall thickness Bottom rail 3.0mm, interior sash 2.5mm, screen sash 4.0mm.
Strip configuration EPDM sealing rubber strip
Glass configuration 5mm+15A+5mm / 5mm+18A+5mm
Hardware system Premium Hardware
Screen Configuration Diamond Net / Imported PET 48-mesh High-definition Screen

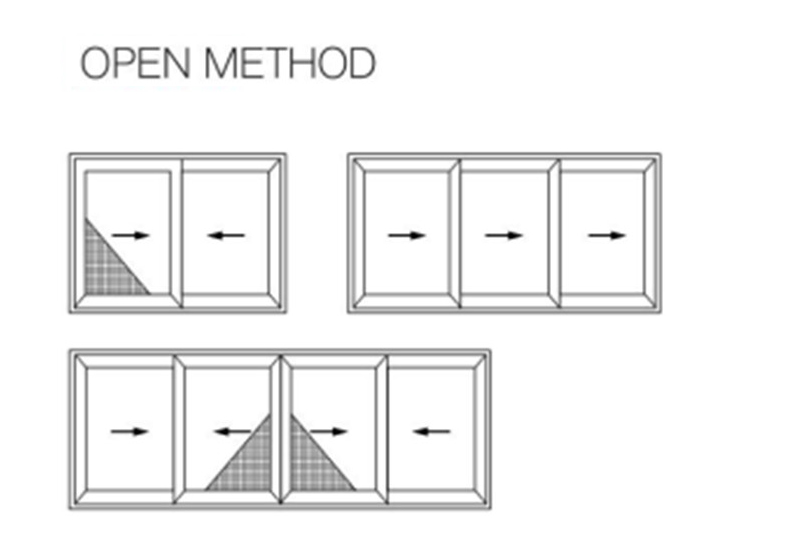

Opening mode Sliding
Customizable Styles

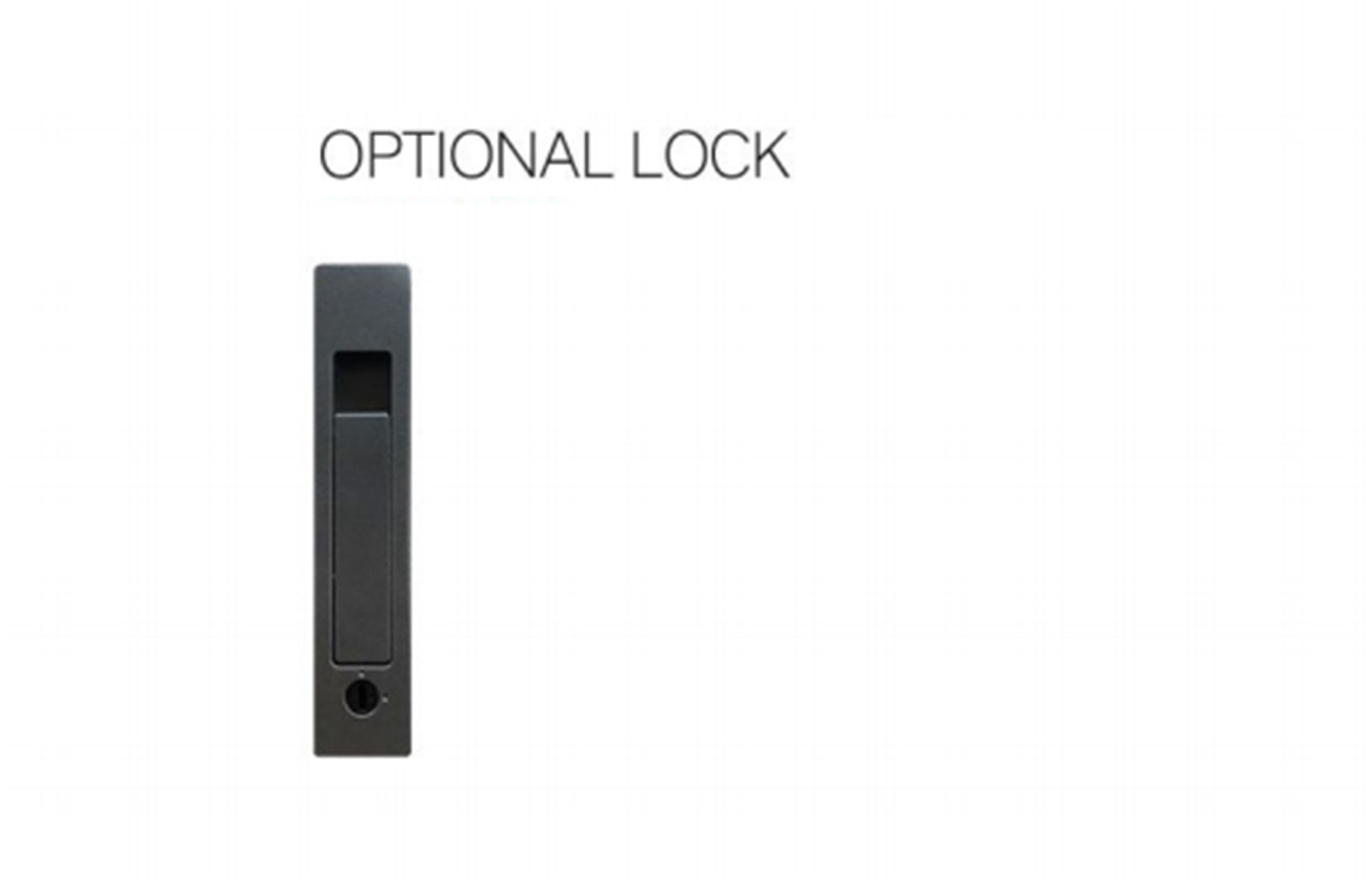

Hardware Accessories
Porcelain swimming gray
Porcelain swimming gray
coffee
Coffee
Galactic Black
Galactic Black
Moonlight Grey
Moonlight Grey
champagne gold
Champagne Gold
Elegant Grey
Elegant Grey
Warm White
Warm White
Quality Certificate 1
Quality Certificate 2
Quality Certificate 3

Frequently Asked Questions

What are the primary profile details of the XINGCHAO sliding window?
The window is constructed using high-strength primary aluminum profiles with a thermal break and a multi-chamber design. This ensures excellent thermal insulation, energy efficiency, and high structural durability.
How does the drainage system prevent backflow and leaks?
It uses an isobaric structure design integrated with an anti-backflow cover plate to achieve rapid, smooth drainage. The sensitive water-blocking plate prevents wind, seepage, and insects from entering.
What design details prevent the window from shaking or derailing?
The window features high flanges with high retaining walls on the outside and center of the track to prevent derailment. Additionally, custom-made anti-balance wheels are fitted on top of the door leaf to prevent shaking and swaying even during typhoon conditions.
What options are available for the screen mesh?
We offer dual screen options: a high-strength, impact-resistant diamond mesh ideal for low-rise residents, and an imported 48-mesh PET high-definition screen that provides superior light transmission and ventilation for high-rise residents.
What are the glass and hardware configurations of the window?
The window supports glass configurations of 5mm+15A+5mm or 5mm+18A+5mm, and it uses premium hardware accessories for smooth, flexible, and airtight operation.
