Suozhe Windows
1 / 1
It adopts primary aluminum profiles, with a thermal break and multi-chamber structure design, which is heat-insulating, environmentally friendly, energy-saving and consumption-reducing, and has high strength.
The drainage system is designed with a structure based on the isobaric principle, and the anti-backflow cover plate is added to ensure rapid and smooth drainage. The sensitive water-blocking plate is insect-proof, anti-seepage and wind-proof.
The track is made of multiple wool strips and the window sash is made of multiple rubber strips. The two fit together more tightly, improving overall sealing and wind resistance.
High flange to prevent derailment. There are high retaining walls on the outside and in the center of the track, effectively preventing the window sashes from derailing and falling.
The hook belt reinforced aluminum material serves as a space-saving handle with a large contact area. It enhances sash strength and prevents swaying and deformation under strong winds.
Features a custom anti-balance wheel on the top of the door leaf to prevent shaking and wind sway. Enjoy a smooth, light, and virtually silent sliding operation.

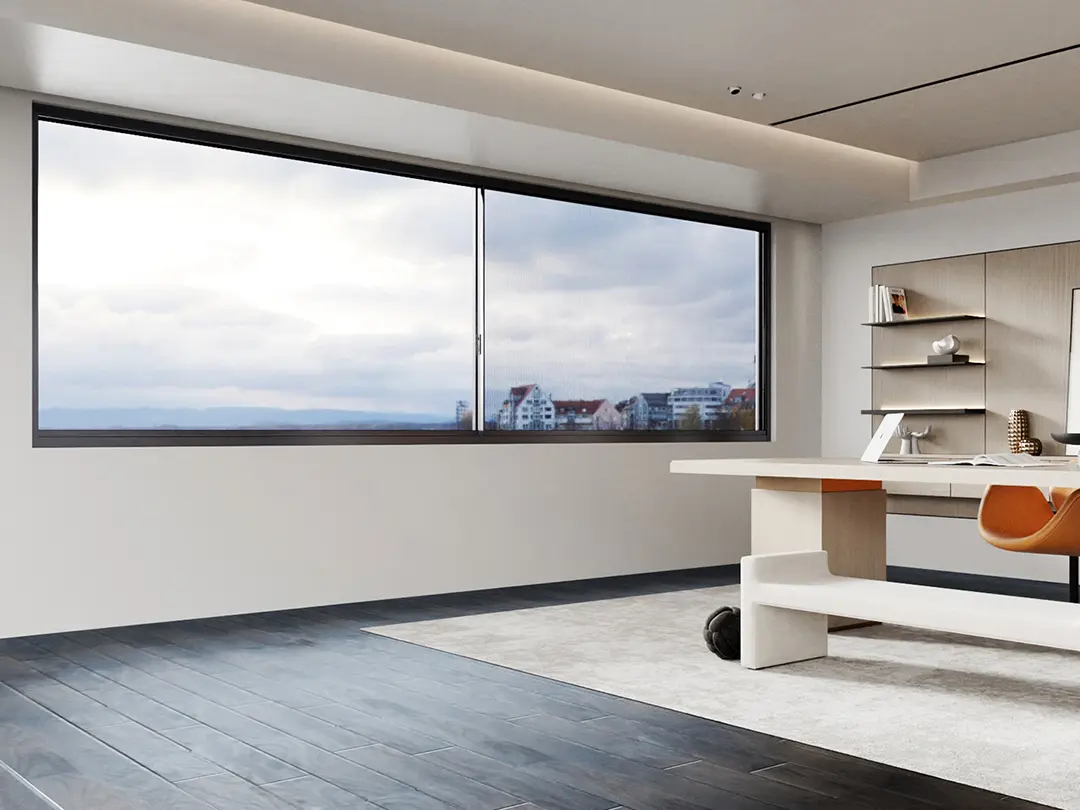

An ultra-narrow visible surface of only 28.5mm offers a wide, high-quality view. The slender frame maximizes natural indoor light transmission.
Select high-quality hardware accessories, convenient and flexible. The frame-wrapped fan design offers excellent air tightness and sound insulation.
The linear embedded track design is highly aesthetic, soundproof, and offers outstanding resistance to wind and water leakage.
Can be made into a widened one-piece handrail, offering a comfortable 205mm ultra-wide sill to optimize scenic viewing.
Options for inner and outer yarns. Diamond mesh offers high-strength security for low-rises. Imported HD screens provide ideal light transmission and ventilation for high-rises.
| Configuration Item | Specification Details |
|---|---|
| Border width | 126mm |
| Profile wall thickness | Bottom rail 3.0mm, interior sash 2.5mm, screen sash 4.0mm. |
| Strip configuration | EPDM sealing rubber strip |
| Glass configuration | 5mm+15A+5mm / 5mm+18A+5mm |
| Hardware system | Premium Integrated Hardware |
| Screen Configuration | Diamond Net / Imported PET 48-mesh High-definition Screen |
| Opening mode | Sliding. |
It features an upgraded design using primary aluminum profiles with a thermal break, a multi-chamber structure, an isobaric drainage system, and enhanced sealing. It offers better thermal insulation, wind resistance, and a narrow 28.5mm visible frame for an expanded view.
The system utilizes an isobaric principle and incorporates an anti-backflow cover plate. A sensitive water-blocking plate serves as an insect-proof, anti-seepage, and wind-proof barrier, facilitating fast, smooth drainage without backing up.
No. The window features high retaining walls on the outside and center of the track. This anti-derailment design securely locks the window sashes, preventing them from falling or shifting even under high wind pressure.
The wall thickness is 3.0mm for the bottom rail, 2.5mm for the interior sash, and 4.0mm for the screen sash. Glass configurations support double-glazed options of either 5mm+15A+5mm or 5mm+18A+5mm.
We recommend the high-strength, impact-resistant Diamond Mesh for safety in low-rise units. For high-rise apartments, the imported PET 48-mesh High-definition Screen is preferred due to its superior light transmission and unobstructed ventilation.
Yes, specifications such as profile thickness, glass types, and screen options can be configured to meet different building structures, security demands, and climate conditions.
